The 2018 Mybo Edge continues our commitment to producing world class compound bows.
Drawing on a depth of knowledge and first hand experience from world class archers, combined with decades of compound bow manufacturing expertise, the Edge brings together those subtle qualities required to give you the edge you need.
Packed with features, including our next generation ergonomic grip, straight and level nocking point travel, 7075 alloy riser, optimised modular cam system, Limb tuner block and many more accuracy boosting details.
Available in a 38.5” length as standard, or a custom build 35” model for draw lengths down to 23.5".
• Made in the UK

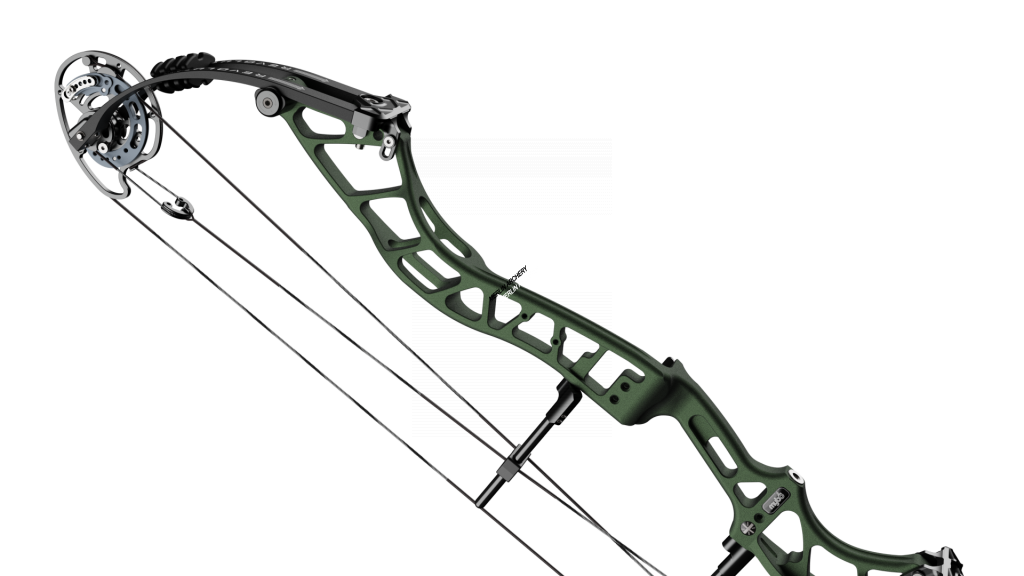

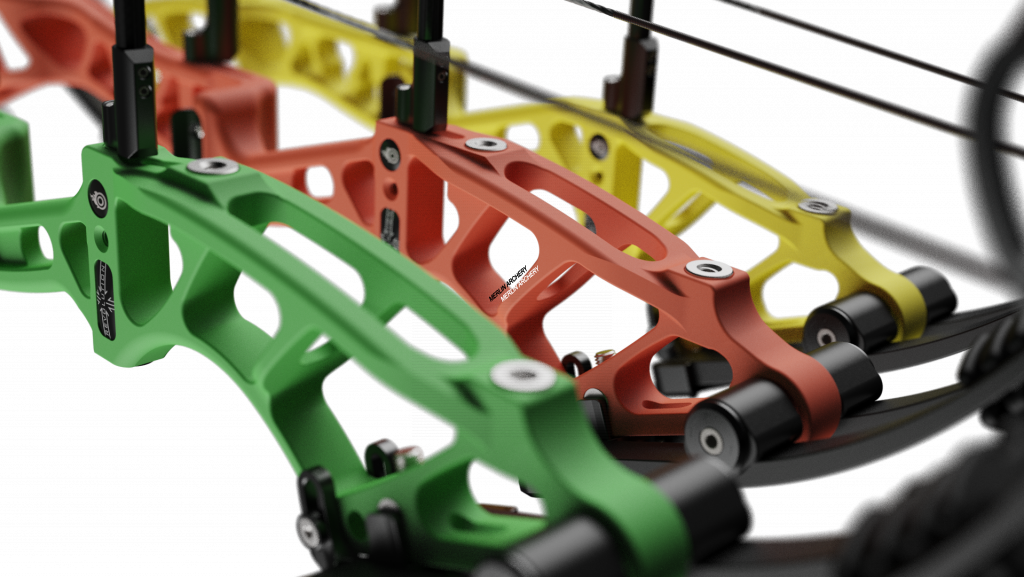

• Riser machined from a solid billet of 7075 aluminium
• Pockets and cams all fully machined
• Polished annodised finish
• Next generation ergonomic grip
• Stainless steel sealed ball bearings
• Oversized 6mm axles for increased rigidity
• Balanced, centreline cam design
• Totally customizable draw stop and back end feel
• Totally straight and level nocking point travel through every draw length setting

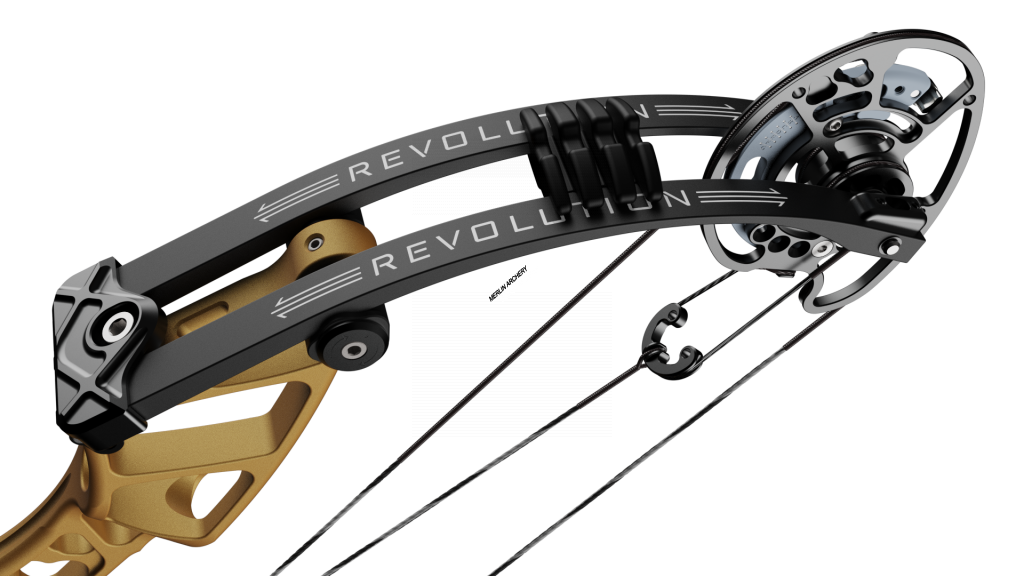

• Wide stance, load balanced limbs with high pre-load
• Adjustable cable guard with powerful clamping mechanism
• AAE Slippery Slide as standard
• SVL limb dampers as standard
• Stainless steel stabiliser inserts and rear mounting bushings bushings
• Personalised flag decal of choice
• Axle to Axle: 38.5"
• Brace Height: 7.5"
• Mass Weight: 4.9lbs
• ATA Speed: 318fps

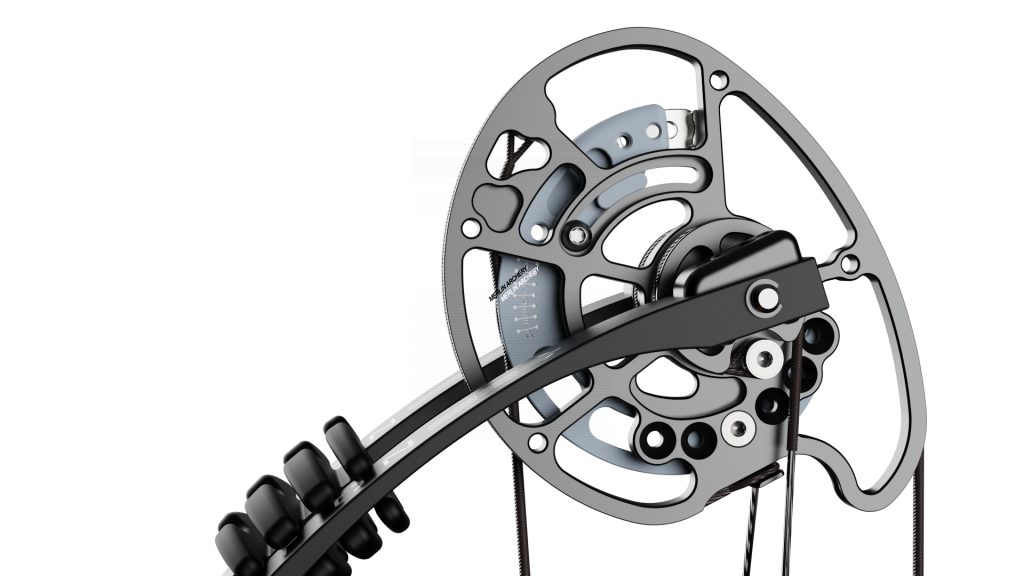

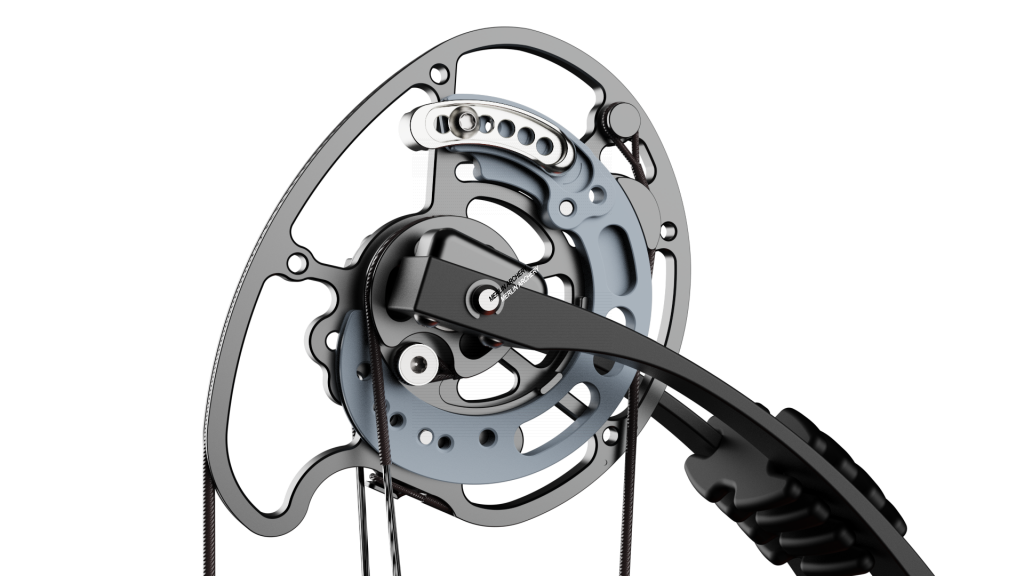

• Cam 1: 29" - 32" (replaceable modules in 1/2" increments)
• Cam 2: 25" - 30" (replaceable modules in 1/2" increments)
• Let off: 65% - 80%
• Max draw weights - Standard: 40#, 50#, 60#
CUSTOM BUILD 35" OPTION IS AVAILABLE DOWN TO 23.5". Please enquire for details.
*Specifications are approximate depending on configuration
* Draw weights listed are the maximum when fully wound up. Limbs can be backed out a maximum of 7 full turns, The amount of poundage change varies depending on the original peak weight. Typically this equates to approximately 17%.
I had heard a lot of talk about a new bow being launched by Merlin, knowing how well the Origin had been received and seeing many on the courses, I was very interested to see what Ben and the team had been working on. It was perfect timing, I was after a more target orientated bow and the 38.5” ATA of the new Mybo Edge sounded spot on. After a demo shoot with the Mybo Edge in early August, I was pretty impressed, the draw cycle was silky smooth, it felt balanced and held steady even with no front stabiliser. On release the bow was sharp, it felt fast for a target bow with these specs. I promptly order an Edge in Orange Blaze.
I collected a few weeks later, the orange anodizing looked amazing, highlighting the detailing and design in the riser. James helped my transfer my bits and set up the bow, from the first arrow, this bow was better than I remembered from August! Solid and stable, the feedback from the bow was something new to me, I was used to shooting a very dead in the hand bow, the MYBO Edge gives back. The tuning capabilities of the Edge are too long to list, straight out of the box this bow performed. I would seriously recommend anyone in the market for a new target bow to pop to Merlin and try a MYBO Edge, this British born bow will make waves (across the Atlantic!). The Team at Merlin: James, Luke, Dan, Jim and Ben Jones, provide top class customer service, big thanks to you all for making a stunning bow. 5 Stars all round.
Review by Jez
Another hit from Mybo.
(Posted on 01/11/2017)
I’ve been fortunate enough this year to have shot the Mybo Origin and three top end PSE Compounds. Having stupidly sold the Origin which in my opinion was superior to the other three, it left me no choice but to sell everything and head back to Mybo. After watching Ben’s brilliant video review a few times, I needed no more convincing and promptly ordered up my beautiful Edge in midnight black. As the other reviews say, this is one fantastic bow to shoot. Holds on target great, draw cycle fantastic and the 60lbs feels like nothing at all to pull. Only thing left to say is, Sssshhhh!! don’t want to tell too many people how good this bow is or everyone will be shooting one!
Ps, huge thanks to Ben and the team for the free repairs after my little accident
Review by Robert
(Posted on 11/10/2017)
Collected my Edge in August. What a fantastic improvement to my Origin. Has improved My groups at all ranges, is more stable and I find it more forgiving am able to hold it longer in the aim.
Just an all round fantastic bit of engineering. Merlin at Loughborough gave me excellent service as is the norm.
Review by Owen
Fantastic bow and customer service.
(Posted on 20/09/2017)
Called in at Merlin Loughborough yesterday to pick up my Mybo Edge, and wow. I have the cherry red and when it first came out it looked the business. This bow is visually very impressive. Big thanks to Dan and Ben for their help getting all the stuff transferred over from my Bowtech Specialist,and also their help setting up the Edge. Straight off the bat the bow has a really smooth draw cycle and and is very comfortable in the hand. The bow is also very quiet on the shot too. During set up and paper tuning I must have shot around 60-80 arrows so can only review it on initial shooting and set up, but I feel this bow is going to be very popular. With it having two available axle lengths, a good range of colours and be as adjustable as this bow is then you need to get yourself into a Merlin store and try one if you are considering a new bow. So ok, I only shot 60-80 arrows and given it 4 stars, but this could easily get the full 5 stars once I have done some more shooting. Thanks Merlin, another quality product.
Review by Andy
MYBO EDGE - Great bow & great service!
(Posted on 20/09/2017)
Collected my MYBO EDGE from Merlin Loughborough. Fitted the accessories on the bow with great help from store staff. Then it was time to shoot the bow and after shooting the first arrow all I can say is WOW!!! The way this bow shoots is incredible. I never have had such a positive feeling from shooting a bow for the first time. You can feel all the energy is transformed into shooting the arrow out of the bow. It feels very solid and stable to shoot and looks great as well. I like the open design of the riser, which has been able due to the use of 7075 aluminium which makes it very strong. Ben and his team have done another great job at designing & making another great compound bow in the MYBO line up. It's also nice to know it is British made in house at Merlin Loughborough. If you are looking at a top line compound bow, make sure you put the MYBO EDGE on your list for trying out, you'll not be disappointed.
